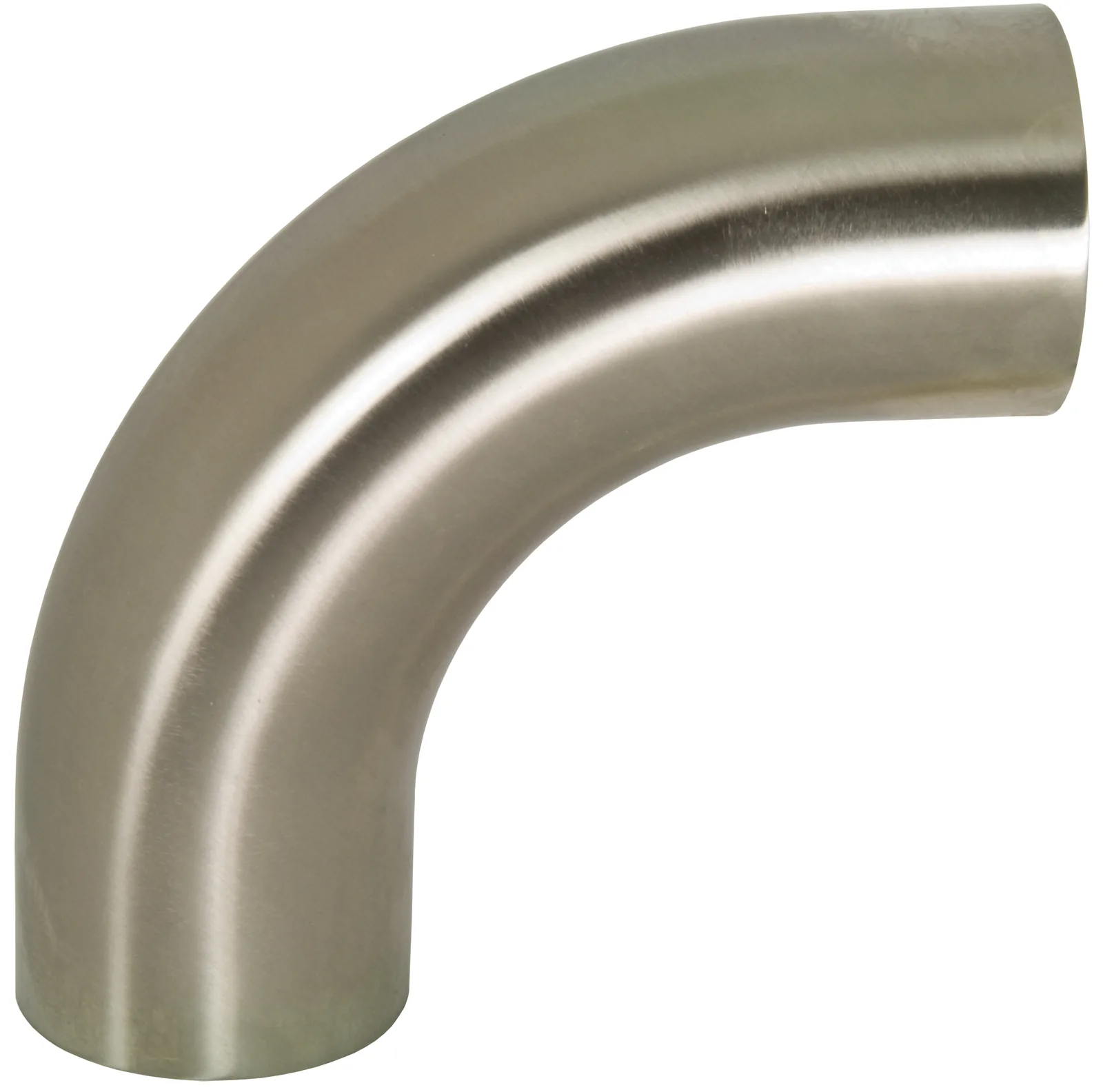

Dimensions & part numbers — 2S 90° weld elbow with tangents
| Size | A | R | 304 SS | 316L SS |
|---|---|---|---|---|
| Part number | Part number | |||
| 1/2″ | 3.000 | .750 | — | RT2S056SA |
| 1/2″ (long) | 3.000 | 1.125 | — | — |
| 3/4″ | 3.000 | 1.125 | — | RT2S756SA |
| 1″ | 2.062 | 1.500 | RT2S104SA | RT2S106SA |
| 1-1/2″ | 2.937 | 2.250 | RT2S154SA | RT2S156SA |
| 2″ | 4.062 | 3.000 | RT2S204SA | RT2S206SA |
| 2-1/2″ | 5.187 | 3.750 | RT2S254SA | RT2S256SA |
| 3″ | 6.312 | 4.500 | RT2S304SA | RT2S306SA |
| 4″ | 8.312 | 6.000 | RT2S404SA | RT2S406SA |
| 6″ | 11.000 | 9.000 | — | — |
| 8″ | 15.000 | 12.000 | — | — |

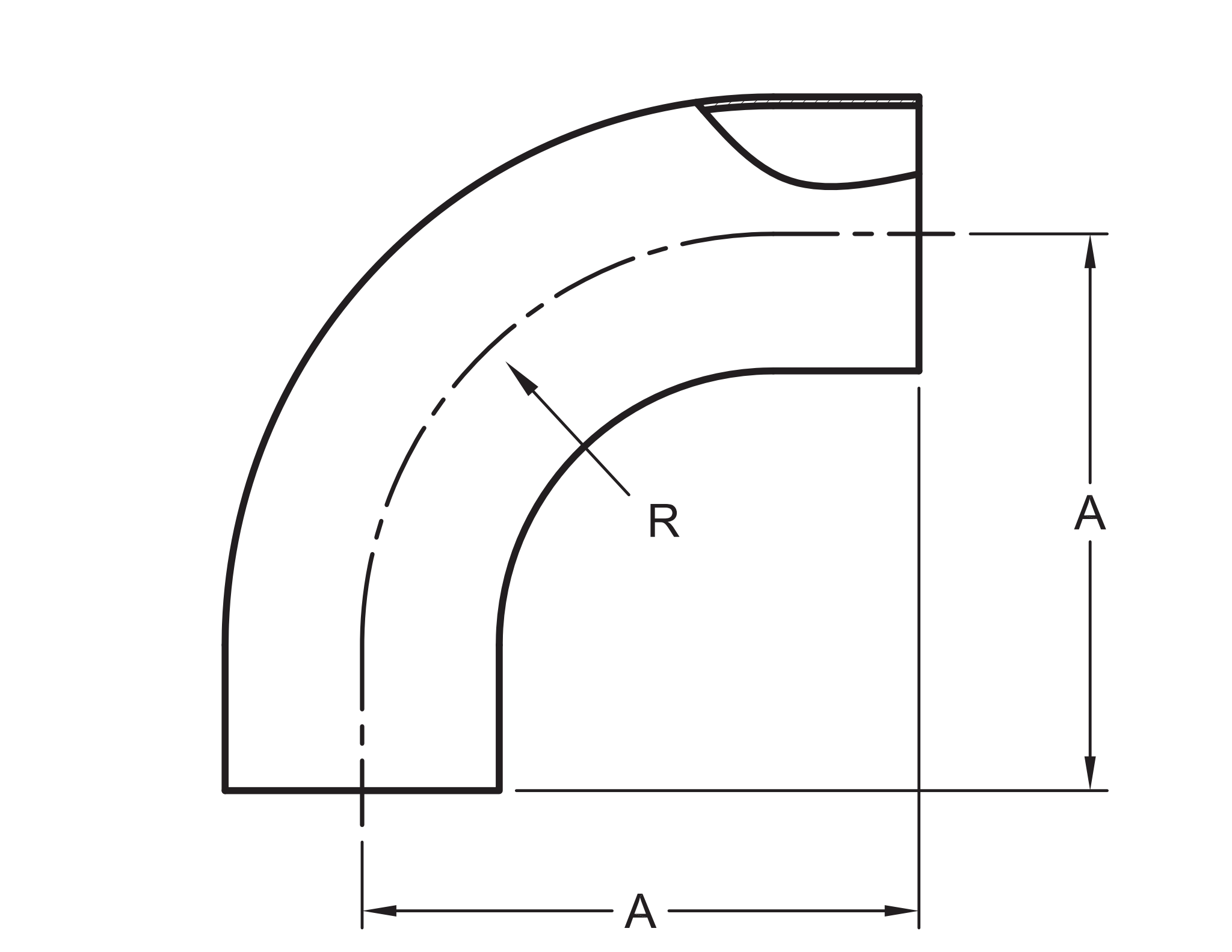

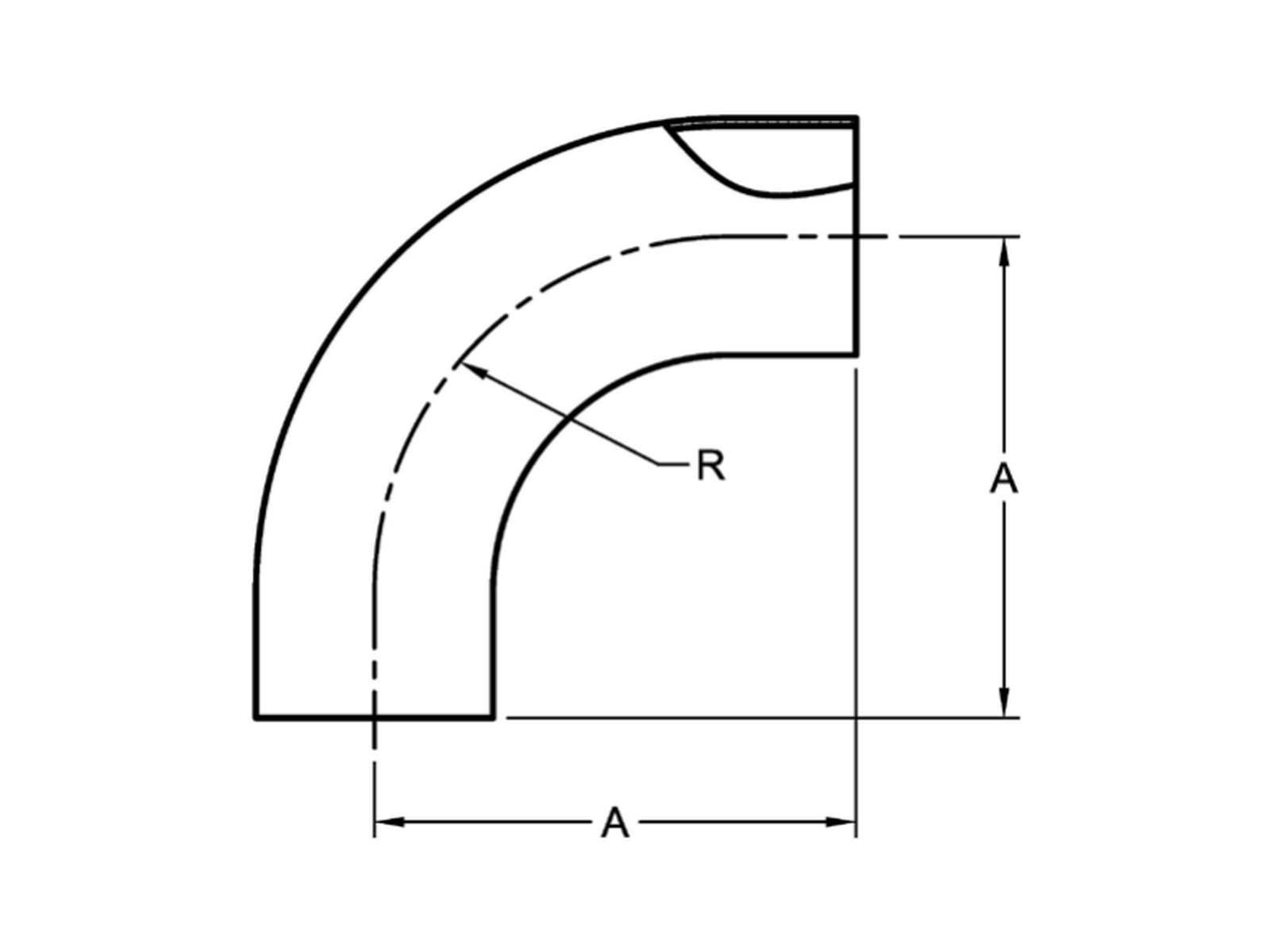

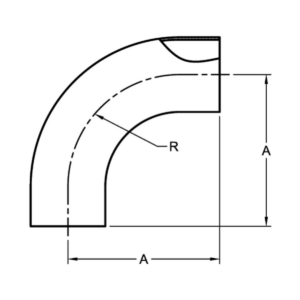

A — see drawing (in)R — see drawing (in)
— — Not stocked online, contact us
— — Not stocked online, contact us
All dimensions in inches. Contact us for sizes and materials not listed online.
Features:
- Straight tangents on both ends for easier fit-up and orbital welding
- Smooth, polished interior for consistent flow and easy cleaning
- Available in 304 and 316L stainless steel
- Meets sanitary industry standards for food, beverage, dairy, and pharmaceutical processing
Sold individually.
Not sure what size you need? Visit our Tri-Clamp Information Guide for a complete sizing reference, gasket selection guide, and pressure ratings.
