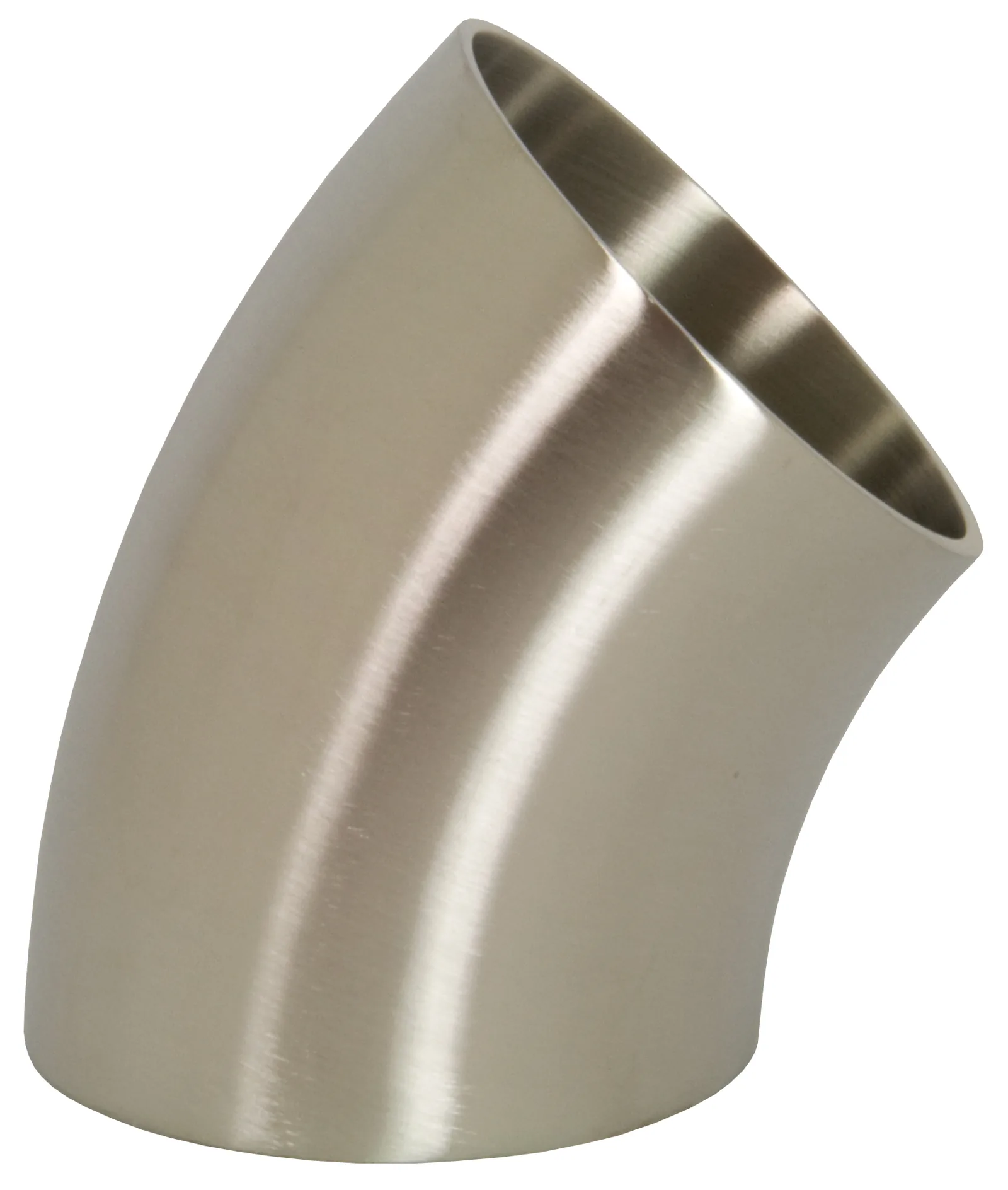

Dimensions & part numbers — 2WK 45° butt weld elbow
| Size | A | 304 SS | 316L SS |
|---|---|---|---|
| Part number | Part number | ||
| 1/2″ | .313 | — | — |
| 1/2″ (long) | .466 | — | — |
| 3/4″ | .466 | — | RT2WK756SA |
| 1″ | .625 | RT2WK104SA | RT2WK106SA |
| 1-1/2″ | .937 | RT2WK154SA | RT2WK156SA |
| 2″ | 1.250 | RT2WK204SA | — |
| 2-1/2″ | 1.562 | RT2WK254SA | RT2WK256SA |
| 3″ | 1.875 | RT2WK304SA | RT2WK306SA |
| 4″ | 2.500 | RT2WK404SA | RT2WK406SA |
| 6″ | 3.750 | — | — |
| 8″ | 5.000 | — | — |
| 10″ | 6.250 | — | — |
| 12″ | 7.500 | — | — |
A — see drawing (in)
— — Not stocked online, contact us
— — Not stocked online, contact us
All dimensions in inches. Contact us for sizes and materials not listed online.
Features:
- Butt weld ends
- 45 degree turn
- Polished finish
- Sizes from 3/4″ through 4″
- Meets sanitary industry standards for food, beverage, dairy, pharmaceutical, and industrial process applications
Sold individually.
