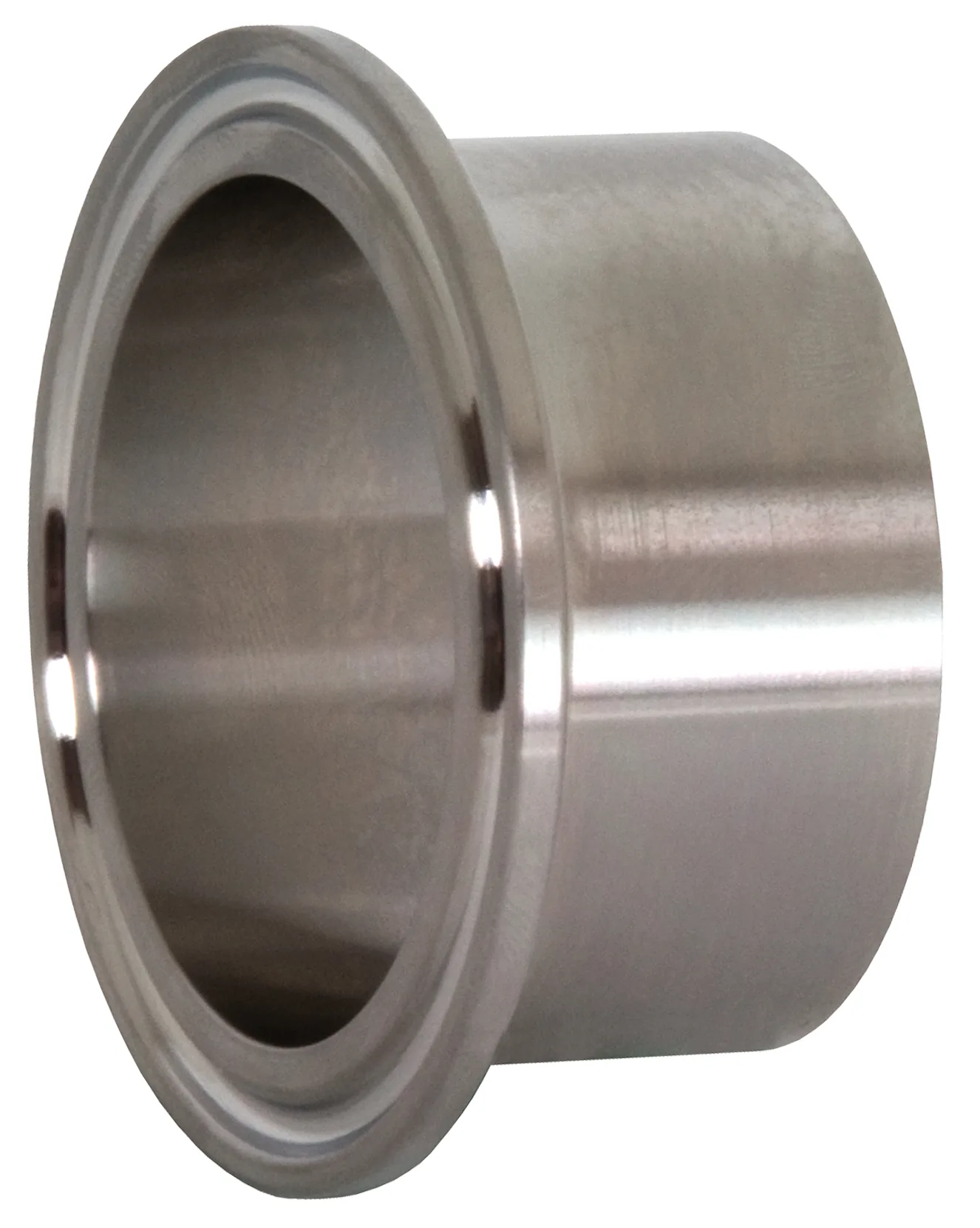

Tri-Clamp Long Weld Ferrule (14AM7)
Tri-Clamp Long Weld Ferrule (14AM7) - Image 2

Tri-Clamp Long Weld Ferrule (14AM7)

Price range: $3.77 through $59.47

Tri-Clamp Long Weld Ferrule (RT14AM)

The long weld ferrule provides an extended weld end for applications that need more weld length. One end welds directly to your sanitary tube; the other provides a standard tri-clamp face for use with a clamp and gasket. The longer weld end gives a larger welding surface, ideal for orbital welding, high-vibration lines, or joints that need extra strength.

Available in 304 and 316L stainless steel: 304 SS for standard food, beverage, and dairy applications; 316L SS for pharmaceutical, biotech, and corrosive environments that need higher purity and chemical resistance.

- +
SKU: RT14AM Category: Brand:

Dimensions & part numbers — 14AM long weld ferrule

Size A 304 SS 316L SS
Part number Part number
1/4 (.035 WT) 1.125 — —
3/8 (.049 WT) 1.125 — —
1/2″ 1.125 — RT14AM056SA
3/4″ 1.125 — RT14AM756SA
1 (TYPE A) 1.125 RT14AM104SA RT14AM106SA
1″ 1.125 RT14AM104SA RT14AM106SA
1-1/2″ 1.125 RT14AM154SA RT14AM156SA
2″ 1.125 RT14AM204SA RT14AM206SA
2-1/2″ 1.125 RT14AM254SA RT14AM256SA
3″ 1.125 RT14AM304SA RT14AM306SA
4″ 1.125 RT14AM404SA RT14AM406SA
5″ 1.500 — —
6″ 1.500 RT14AM604SA RT14AM606SA
8″ 1.500 — —
10″ 1.500 — —
12″ 1.500 — —

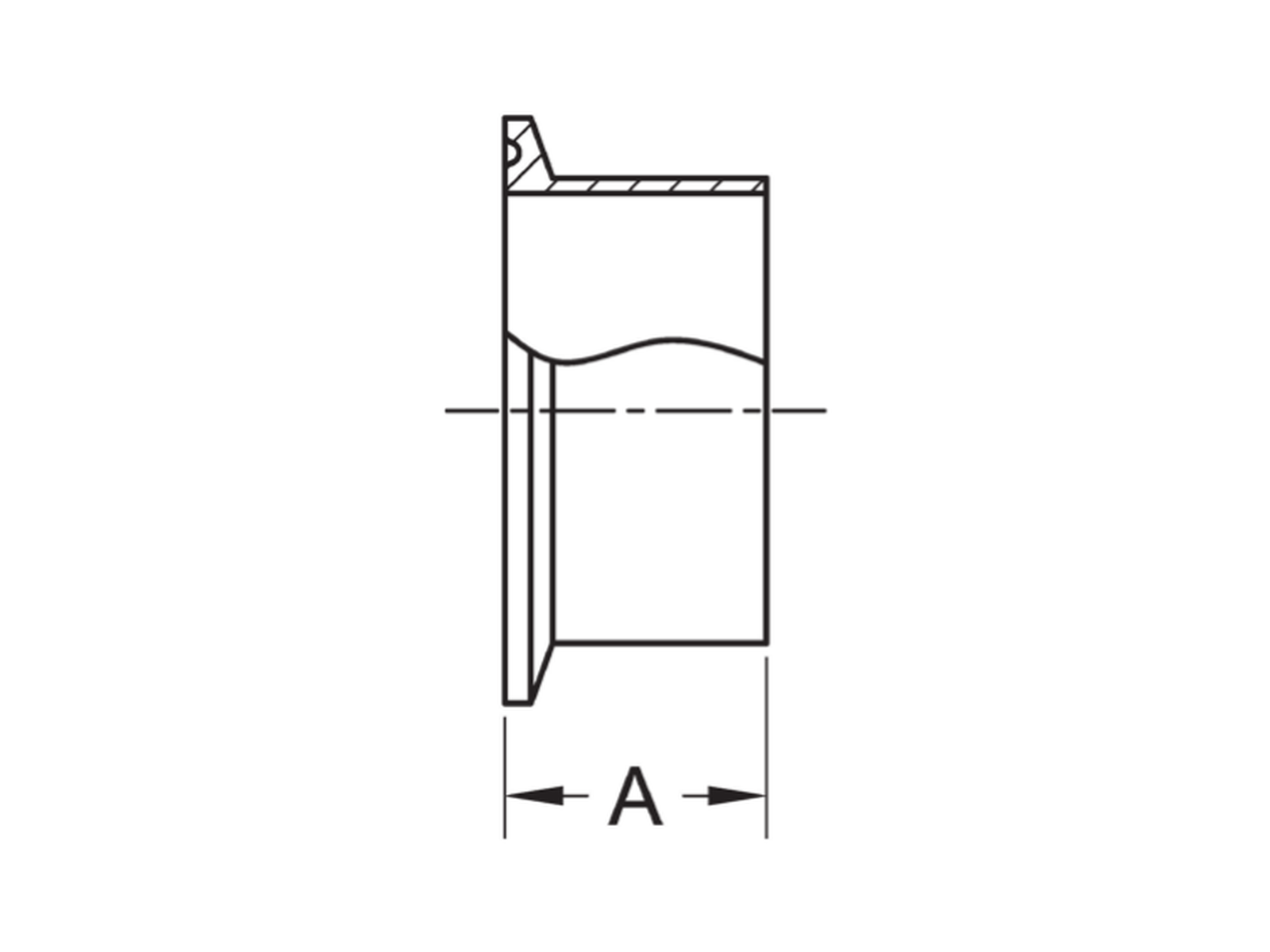

A — see drawing (in)
— — Not stocked online, contact us

All dimensions in inches. Contact us for sizes and materials not listed online.

Features:

  • Extended weld end for greater joint strength and weldability
  • Standard tri-clamp face compatible with all tri-clamp fittings, gaskets, and clamps
  • Available in 304 and 316L stainless steel
  • Meets sanitary industry standards for food, beverage, dairy, pharmaceutical, and industrial process applications

Sold individually. Clamp and gasket sold separately.

Not sure what size you need? Visit our Tri-Clamp Information Guide for a complete sizing reference, gasket selection guide, and pressure ratings.

Weight 1.2 lbs
Dimensions 6.5 × 6.5 × 1.125 in
Size

, , , , , , , ,

Material Grade

,

Dimensions

Dimensions & part numbers — 14AM7 long weld ferrule

Tube OD A
Length		 B
ID		 C
OD		 304 SS 316L SS
Part number Part number
1/2″ 1.12 0.37 0.50 — 14AM7-050-316L
3/4″ 1.12 0.62 0.75 — 14AM7-075-316L
1″ 1.12 0.87 1.00 14AM7-100-304 14AM7-100-316L
1-1/2″ 1.12 1.37 1.50 14AM7-150-304 14AM7-150-316L
2″ 1.12 1.87 2.00 14AM7-200-304 14AM7-200-316L
2-1/2″ 1.12 2.37 2.50 14AM7-250-304 14AM7-250-316L
3″ 1.12 2.87 3.00 14AM7-300-304 14AM7-300-316L
4″ 1.12 3.83 4.00 14AM7-400-304 14AM7-400-316L
5″ 1.12 4.83 5.00 — 14AM7-500-316L
6″ 1.50 5.78 6.00 14AM7-600-304 14AM7-600-316L
8″ 1.50 7.78 8.00 14AM7-800-304 14AM7-800-316L
10″ 1.75 9.78 10.00 14AM7-1000-304 14AM7-1000-316L
12″ 1.75 11.78 12.00 14AM7-1200-304 14AM7-1200-316L

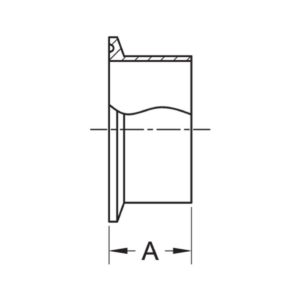

A — Overall length (in)
B — Inside diameter (in)
C — Outside diameter (in)
— — Not available in this material

All dimensions in inches. 1/2″–4″ in stock. 5″–12″ available by order. Contact us for lead times on larger sizes.
