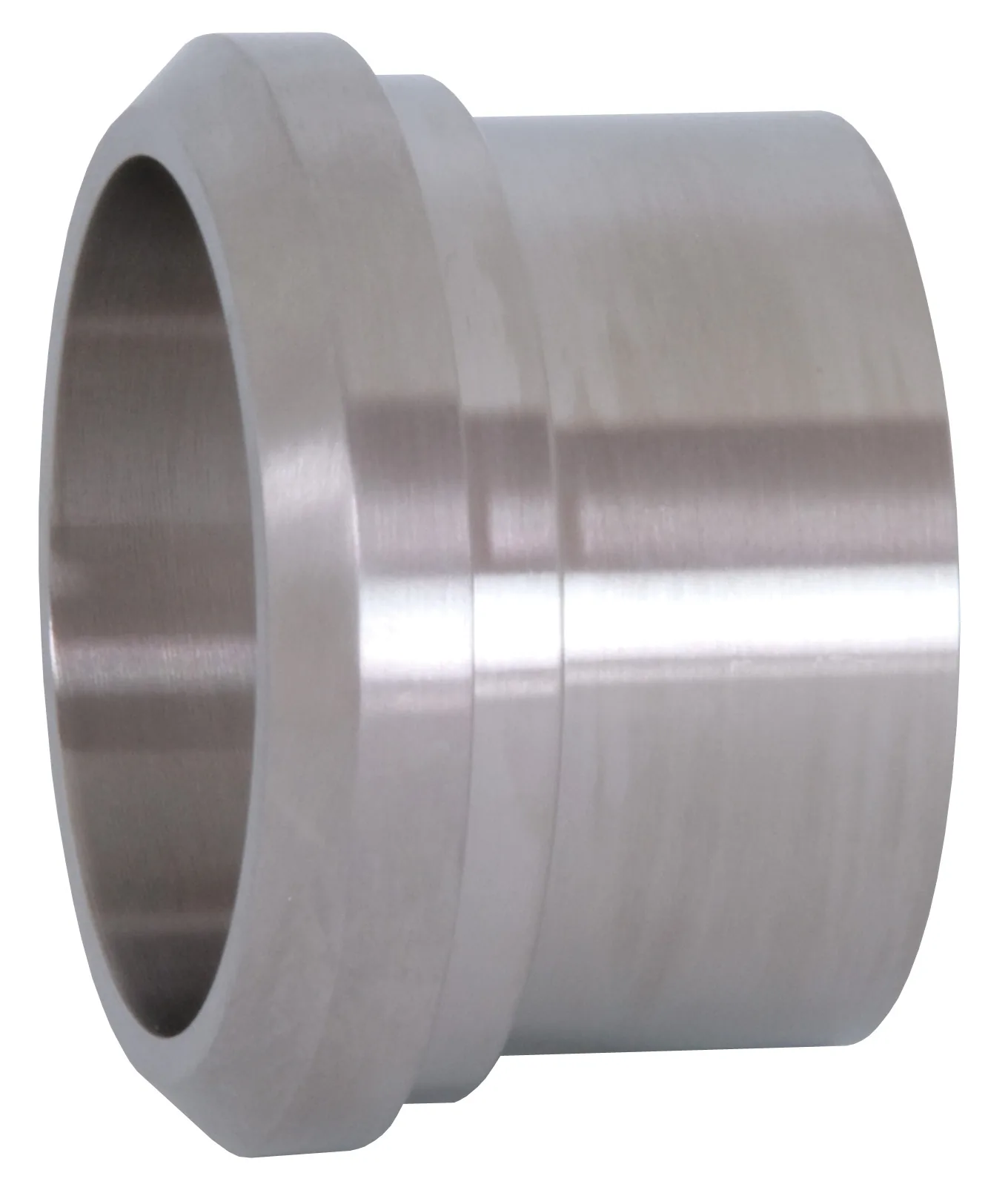

Dimensions & part numbers — 14A bevel seat long plain ferrule
| Size | A | 304 SS |
|---|---|---|
| Part number | ||
| 1″ | 1.375 | — |
| 1-1/2″ | 1.500 | RT14A154SA |
| 2″ | 1.500 | RT14A204SA |
| 2-1/2″ | 1.750 | RT14A254SA |
| 3″ | 1.750 | RT14A304SA |
| 4″ | 1.750 | — |

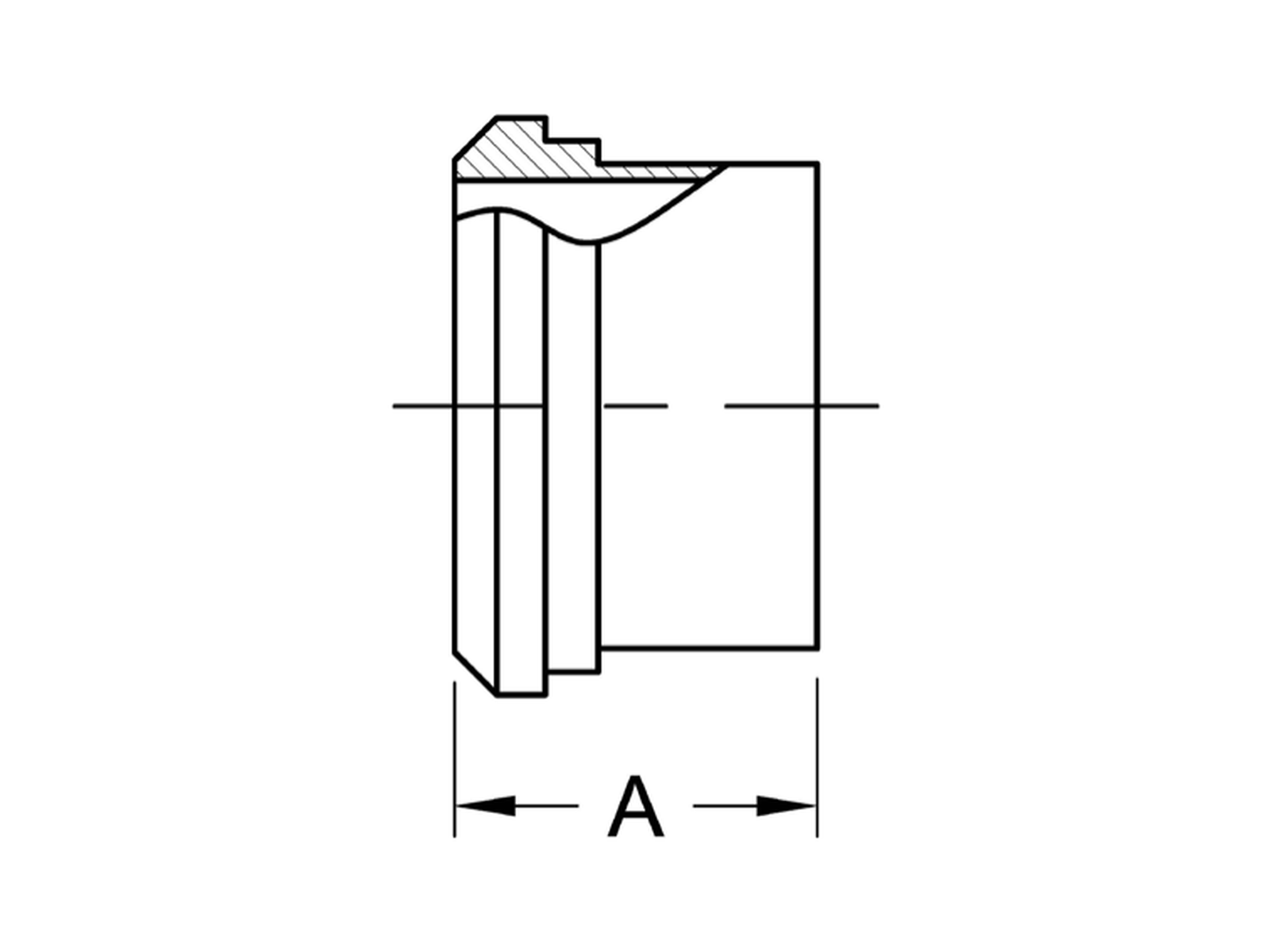

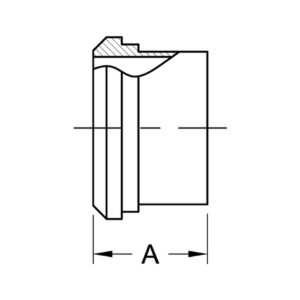

A — see drawing (in)
— — Not stocked online, contact us
— — Not stocked online, contact us
All dimensions in inches. Contact us for sizes and materials not listed online.
Features:
- Long weld end
- Plain end for welding to tube
- Bevel seat face for use with bevel seat nuts and gaskets
- Sizes from 1-1/2″ through 3″
- Meets sanitary industry standards for food, beverage, dairy, pharmaceutical, and industrial process applications
Sold individually. Nut and gasket sold separately.
