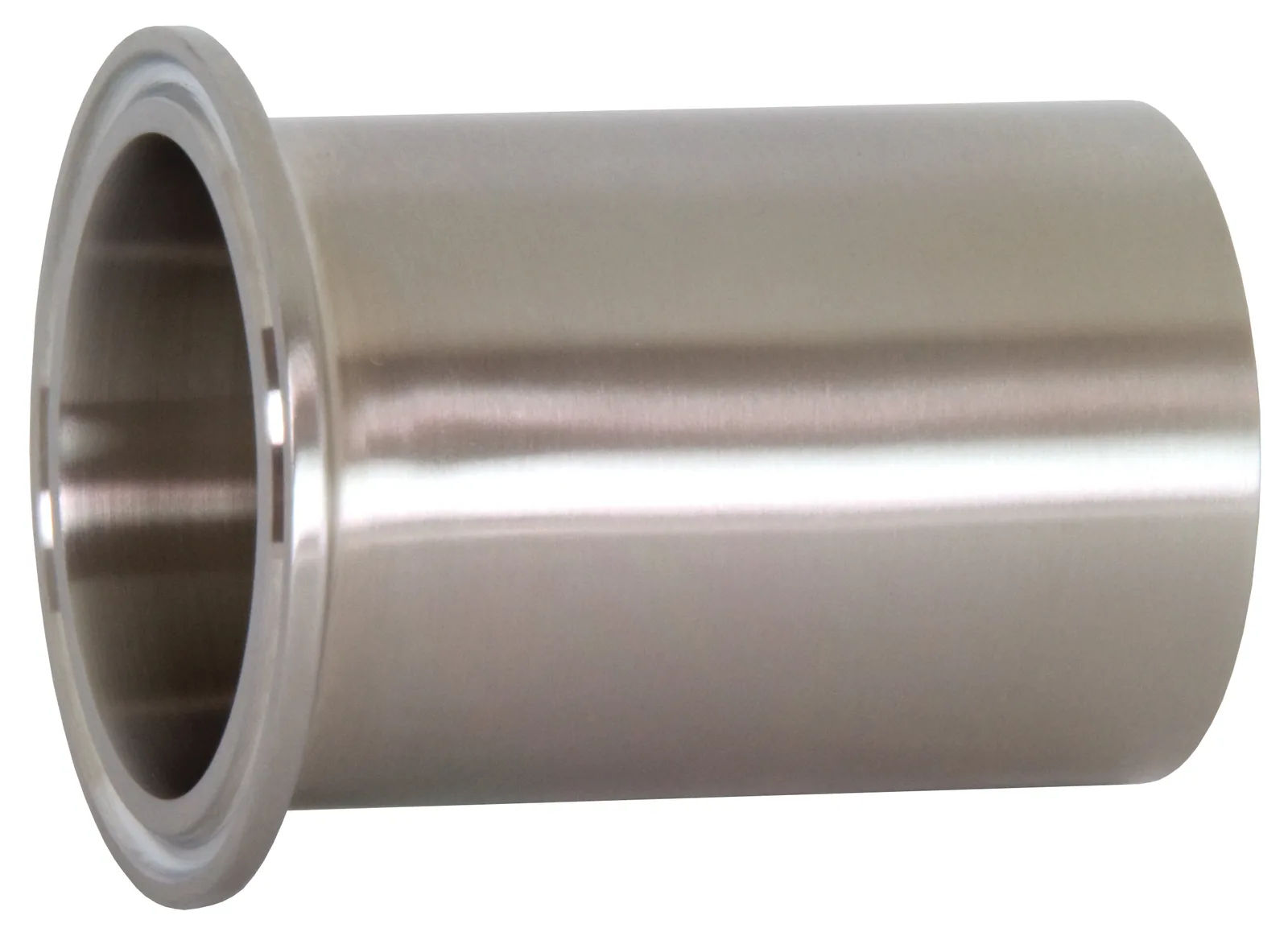

Dimensions & part numbers — 14WLMP light tank ferrule
| Size | A | 304 SS | 316L SS |
|---|---|---|---|
| Part number | Part number | ||
| 1/2″ | 3.000 | — | — |
| 3/4″ | 3.000 | — | — |
| 1″ | 3.000 | RT14WLMP104SA | — |
| 1-1/2″ | 3.000 | — | RT14WLMP156SA |
| 2″ | 3.000 | RT14WLMP204SA | RT14WLMP206SA |
| 2-1/2″ | 3.000 | RT14WLMP254SA | RT14WLMP256SA |
| 3″ | 4.000 | RT14WLMP304SA | — |
| 4″ | 4.000 | — | RT14WLMP406SA |
| 6″ | 6.000 | — | — |
| 8″ | 6.000 | — | — |
| 10″ | 6.000 | — | — |
| 12″ | 6.000 | — | — |
A — see drawing (in)
— — Not stocked online, contact us
— — Not stocked online, contact us
All dimensions in inches. Contact us for sizes and materials not listed online.
Features:
- Light wall construction for tank and vessel connections
- Standard tri-clamp face compatible with tri-clamp clamps and gaskets
- Sizes from 1″ through 4″
- Meets sanitary industry standards for food, beverage, dairy, pharmaceutical, and industrial process applications
Sold individually. Clamp and gasket sold separately.
Not sure what size you need? Visit our Tri-Clamp Information Guide for a complete sizing reference, gasket selection guide, and pressure ratings.
