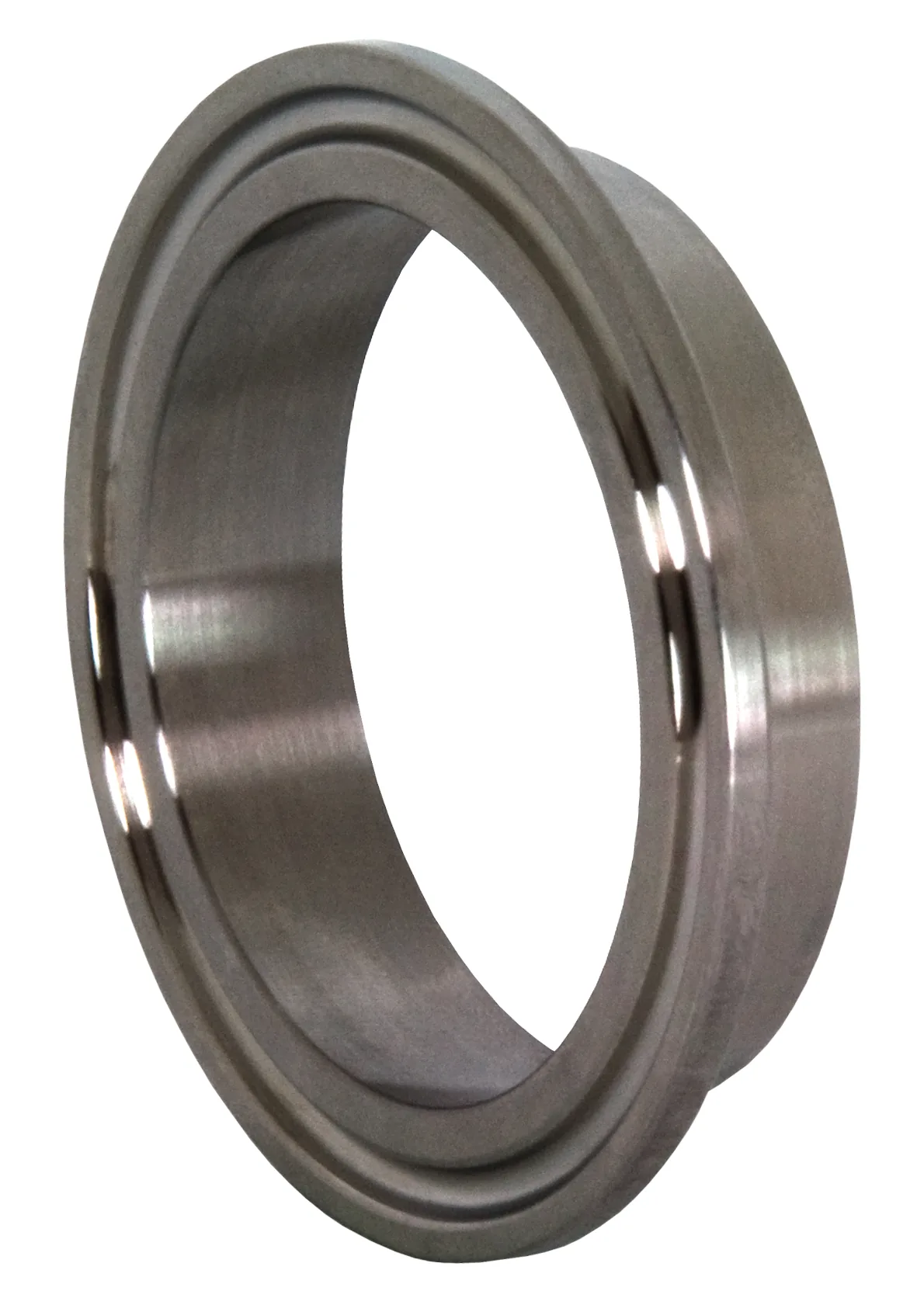

Tri-Clamp Short Weld Ferrule
Tri-Clamp Short Weld Ferrule - Image 2

Tri-Clamp Short Weld Ferrule

Price range: $2.85 through $36.30

Tri-Clamp Short Weld Ferrule (RT14WMP)

Connect your sanitary tubing to any tri-clamp fitting with this short weld ferrule. One end welds directly to your tube; the other provides a standard tri-clamp face for use with a clamp and gasket. The short weld end keeps connections compact for tight installations.

Available in 304 and 316L stainless steel: 304 SS for standard food, beverage, and dairy applications; 316L SS for pharmaceutical, biotech, and corrosive environments that need higher purity and chemical resistance.

- +
SKU: RT14WMP Category: Brand:

Dimensions & part numbers — 14WMP short weld ferrule

Size A 304 SS 316L SS
Part number Part number
1/4 (.035 WT) .500 — —
1/2″ .500 — RT14WMP056SA
3/4″ .500 — RT14WMP756SA
1 (TYPE A) .500 RT14WMP104SA RT14WMP106SA
1″ .500 RT14WMP104SA RT14WMP106SA
1-1/2″ .500 RT14WMP154SA RT14WMP156SA
2″ .500 RT14WMP204SA RT14WMP206SA
2-1/2″ .500 RT14WMP254SA RT14WMP256SA
3″ .500 RT14WMP304SA RT14WMP306SA
4″ .625 RT14WMP404SA RT14WMP406SA
5″ .750 — —
6″ .750 RT14WMP604SA RT14WMP606SA
8″ .875 — —
10″ .875 — —
12″ 1.000 — —

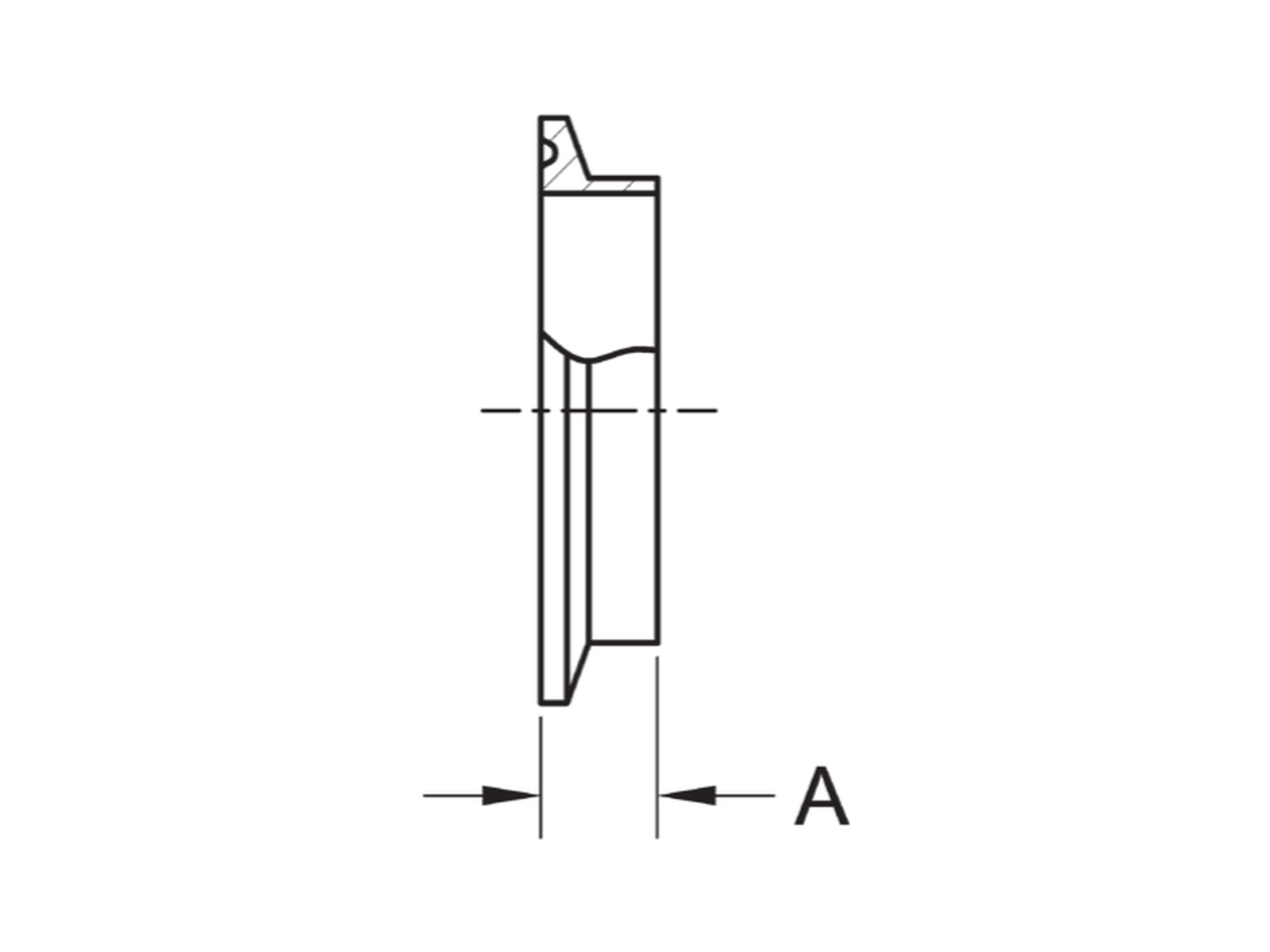

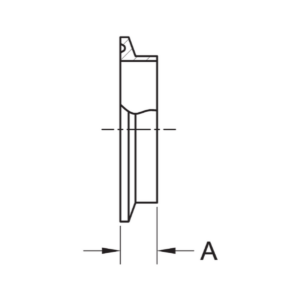

A — see drawing (in)
— — Not stocked online, contact us

All dimensions in inches. Contact us for sizes and materials not listed online.

Features:

  • Short weld end for compact installations
  • Standard tri-clamp face compatible with all tri-clamp fittings, gaskets, and clamps
  • Available in 304 and 316L stainless steel
  • Meets sanitary industry standards for food, beverage, dairy, pharmaceutical, and industrial process applications

Sold individually. Clamp and gasket sold separately.

Not sure what size you need? Visit our Tri-Clamp Information Guide for a complete sizing reference, gasket selection guide, and pressure ratings.

Weight 0.57 lbs
Dimensions 6.5 × 6.5 × 0.875 in
Size

, , , , , , , , ,

Material Grade

,

Dimensions

Dimensions & part numbers — 14WMP short weld ferrule

Tube OD A
Length		 B
ID		 C
OD		 304 SS 316L SS
Part number Part number
1/2″ 0.50 0.37 0.50 — 14WMP-050-316L
3/4″ 0.50 0.62 0.75 — 14WMP-075-316L
1″ 0.50 0.87 1.00 14WMP-100-304 14WMP-100-316L
1-1/2″ 0.50 1.37 1.50 14WMP-150-304 14WMP-150-316L
2″ 0.50 1.87 2.00 14WMP-200-304 14WMP-200-316L
2-1/2″ 0.50 2.37 2.50 14WMP-250-304 14WMP-250-316L
3″ 0.50 2.87 3.00 14WMP-300-304 14WMP-300-316L
4″ 0.62 3.83 4.00 14WMP-400-304 14WMP-400-316L
5″ 0.75 4.83 5.00 — 14WMP-500-316L
6″ 0.87 5.78 6.00 14WMP-600-304 14WMP-600-316L
8″ 0.87 7.78 8.00 14WMP-800-304 14WMP-800-316L
10″ 0.87 9.78 10.00 14WMP-1000-304 14WMP-1000-316L
12″ 0.87 11.78 12.00 14WMP-1200-304 14WMP-1200-316L
A — Overall length (in)
B — Inside diameter (in)
C — Outside diameter (in)
— — Not available in this material

All dimensions in inches. 1/2″–4″ in stock. 5″–12″ available by order. Contact us for lead times on larger sizes.
