Tri-Clamp Heavy Duty Single Pin Clamp (13MHM)

Price range: $7.01 through $15.17

Heavy Duty Single Pin Clamp (RT13MHM)

Built for demanding sanitary process applications, this heavy duty single pin tri-clamp delivers reliable, leak-free connections where standard clamps fall short. The reinforced single-pin design provides more clamping force while staying quick to install and remove, with no tools needed for most sizes.

Made from stainless steel to the cleanliness standards of food, beverage, dairy, and pharmaceutical processing. The heavy duty profile adds strength for higher-pressure lines and vibration-prone installations.

- +
SKU: RT13MHM Category: Brand:

Dimensions & part numbers — 13MHM single pin clamp

Size A PSI RATING @ 70°F PSI RATING @ 250°F Part number
Part number
1/2 & 3/4″ 1.125 1500 1200 RT13MHM05SA
1 & 1-1/2″ 2.122 500 300 RT13MHM15SA
2″ 2.654 450 300 RT13MHM20SA
2-1/2″ 3.185 400 200 RT13MHM25SA
3″ 3.717 350 195 RT13MHM30SA
4″ 4.820 300 150 RT13MHM40SA
5″ 5.625 150 75 —
6″ 6.695 150 75 RT13MHM60SA
8″ 8.695 100 50 —
10″ 10.695 75 40 —
12″ 12.695 50 25 —

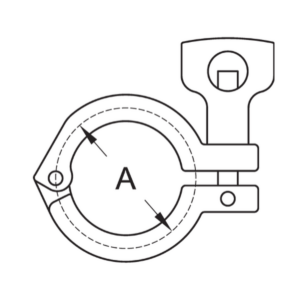

A — see drawing (in)
— — Not stocked online, contact us

All dimensions in inches. Contact us for sizes and materials not listed online.

Features:

  • Heavy duty construction for high-pressure and high-vibration applications
  • Single pin wing nut closure for fast, tool-free assembly
  • Stainless steel construction
  • Compatible with standard tri-clamp fittings and gaskets
  • Meets sanitary industry standards

Sold individually. Ferrules and gasket sold separately.

Not sure what size you need? Visit our Tri-Clamp Information Guide for a complete sizing reference, gasket selection guide, and pressure ratings.

Weight 1.22 lbs
Dimensions 6.3 × 6.3 × 1.25 in
