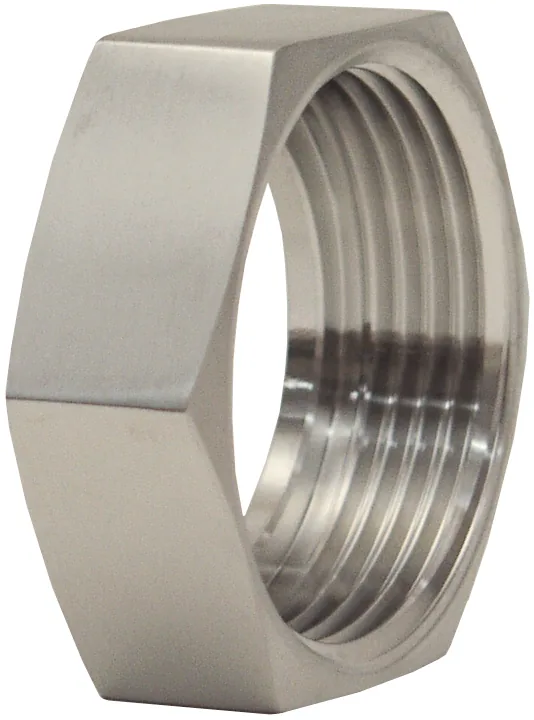

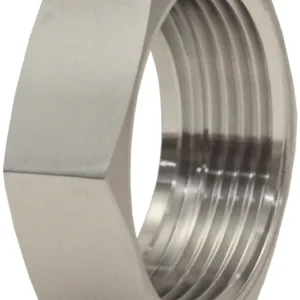

Dimensions & part numbers — 13H bevel seat hex union nut
| Size | A | 304 SS |
|---|---|---|
| Part number | ||
| 1″ | 1.812 | RT13H104SA |
| 1-1/2″ | 2.406 | RT13H154SA |
| 2″ | 3.000 | RT13H204SA |
| 2-1/2″ | 3.594 | RT13H254SA |
| 3″ | 4.188 | — |
| 4″ | 5.438 | RT13H404SA |

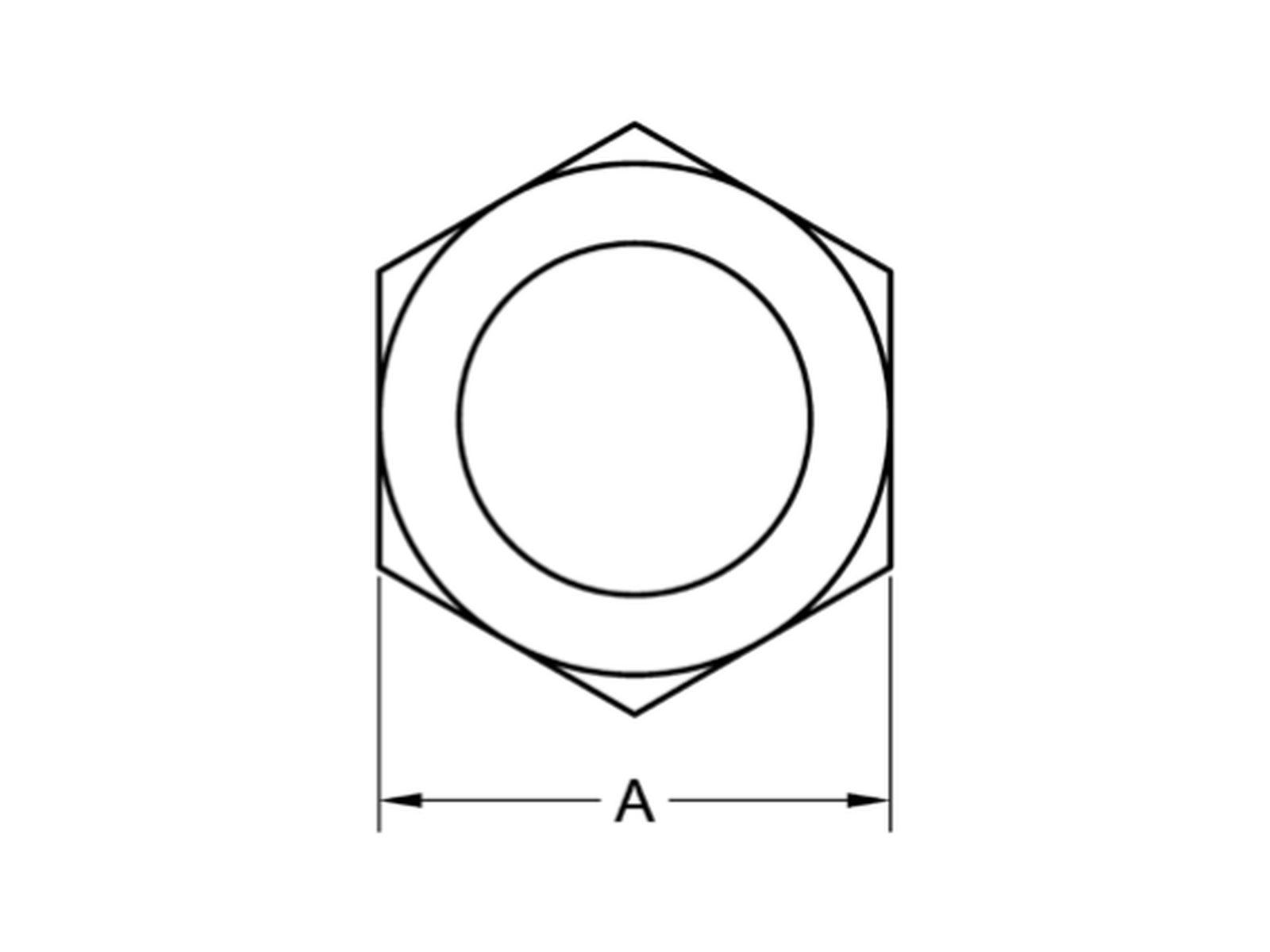

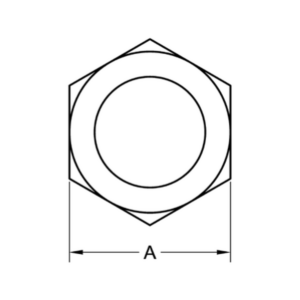

A — see drawing (in)
— — Not stocked online, contact us
— — Not stocked online, contact us
All dimensions in inches. Contact us for sizes and materials not listed online.
Features:
- Hex design for use with a standard bevel seat wrench
- Fits bevel seat ferrules and fittings
- Stainless steel construction for sanitary service
- Sizes from 1″ through 4″
Sold individually. Ferrule, gasket and wrench sold separately.
