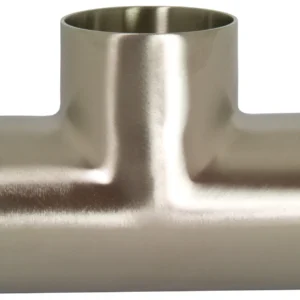

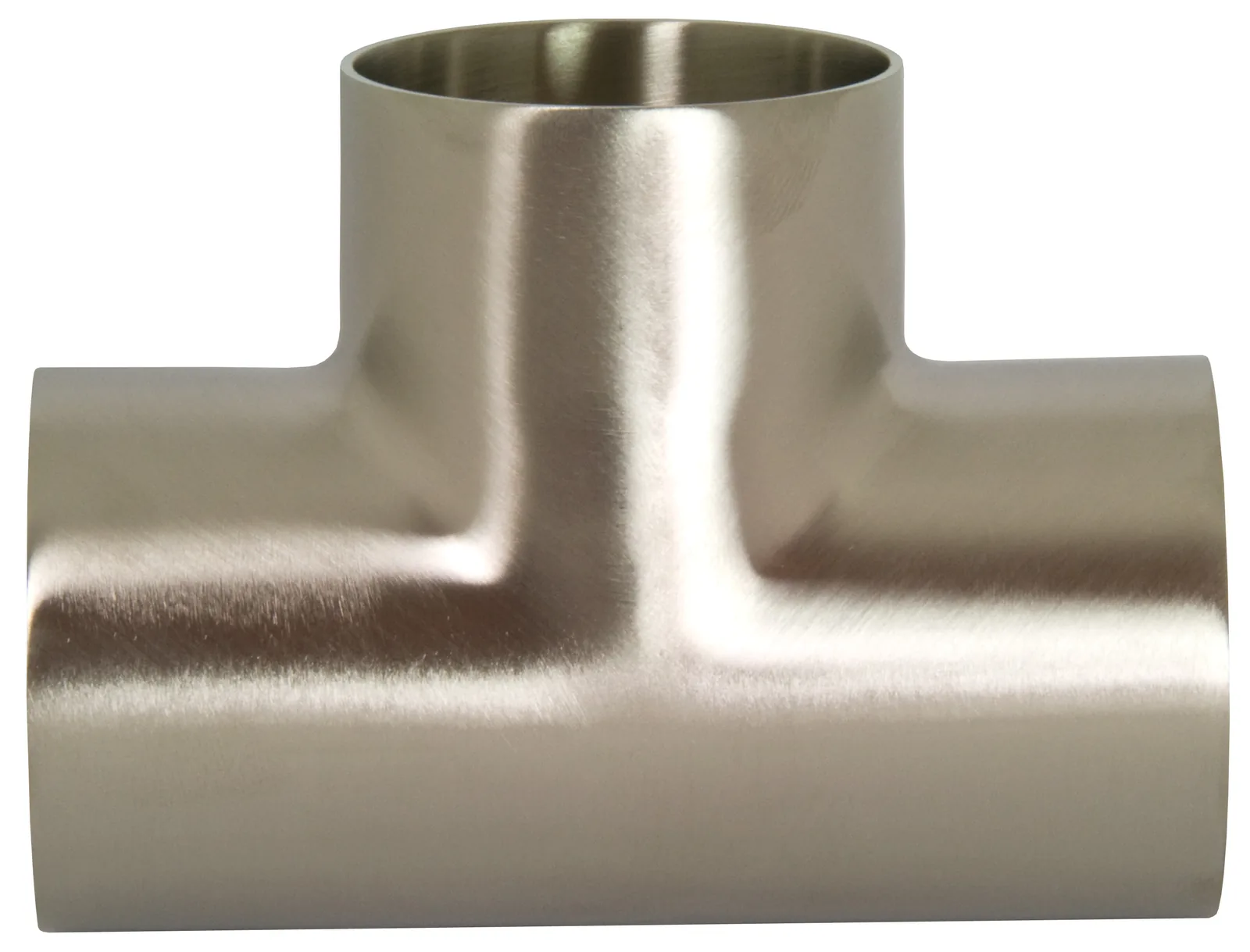

Dimensions & part numbers — 7WWW butt weld short tee
| Size | A | B | 304 SS | 316L SS |
|---|---|---|---|---|
| Part number | Part number | |||
| 1/2″ | 1.125 | 2.250 | — | — |
| 3/4″ | 1.125 | 2.250 | — | — |
| 1″ | 1.125 | 2.250 | RT7WWW104SA | RT7WWW106SA |
| 1-1/2″ | 1.656 | 3.312 | RT7WWW154SA | RT7WWW156SA |
| 2″ | 2.063 | 4.125 | RT7WWW204SA | RT7WWW206SA |
| 2-1/2″ | 2.344 | 4.688 | RT7WWW254SA | RT7WWW256SA |
| 3″ | 2.594 | 5.188 | RT7WWW304SA | RT7WWW306SA |
| 4″ | 3.438 | 6.875 | — | RT7WWW406SA |
| 6″ | 5.625 | 11.250 | — | — |
| 8″ | 7.000 | 14.000 | — | — |
| 10″ | 8.500 | 17.000 | — | — |
| 12″ | 10.000 | 20.000 | — | — |

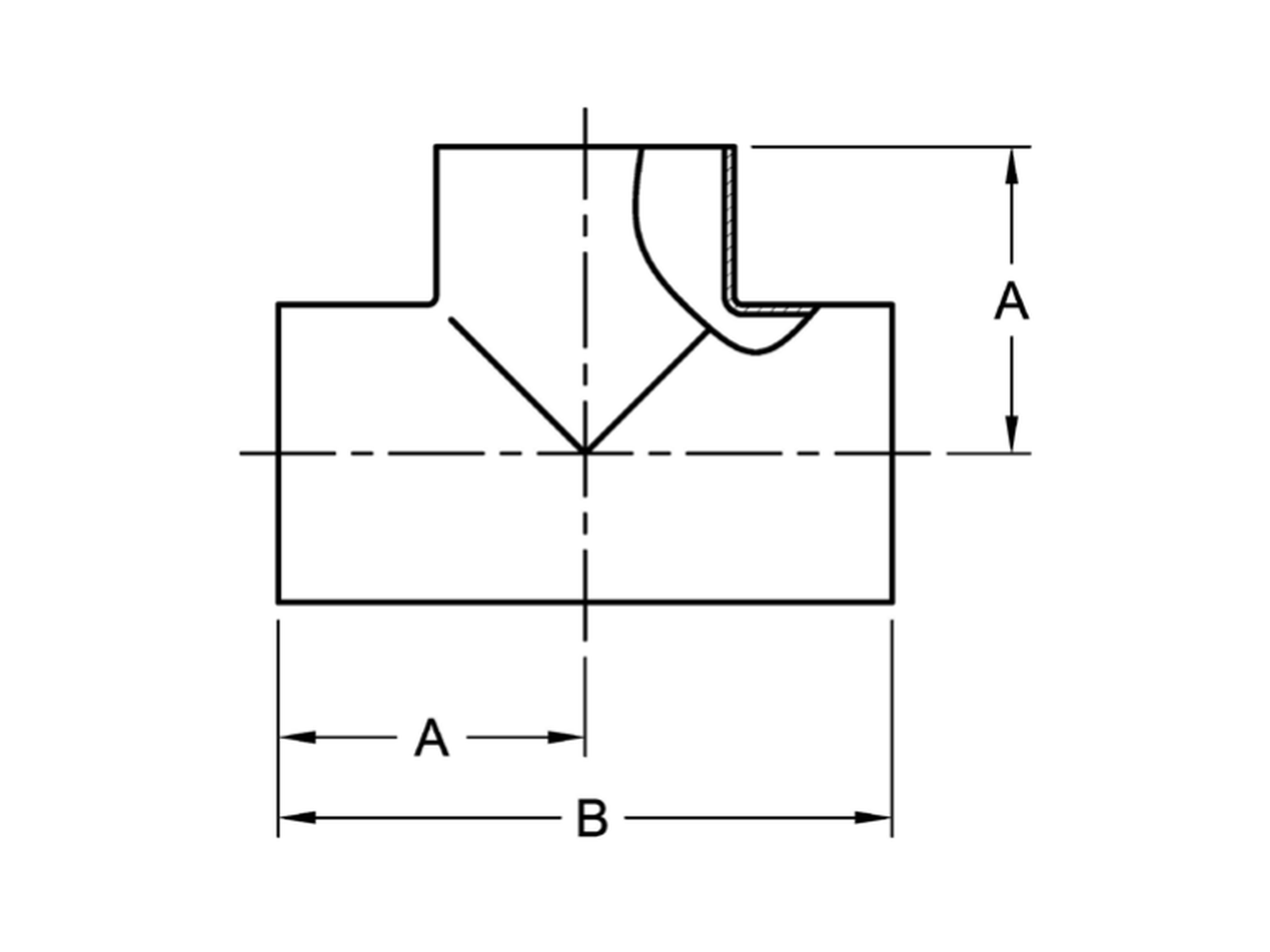

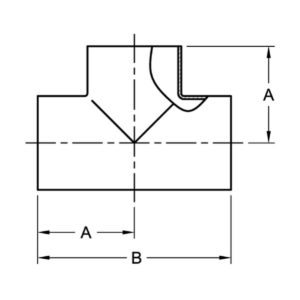

A — see drawing (in)B — see drawing (in)
— — Not stocked online, contact us
— — Not stocked online, contact us
All dimensions in inches. Contact us for sizes and materials not listed online.
Features:
- Butt weld ends
- Short body style
- Polished finish
- Sizes from 1″ through 4″
- Meets sanitary industry standards for food, beverage, dairy, pharmaceutical, and industrial process applications
Sold individually.
