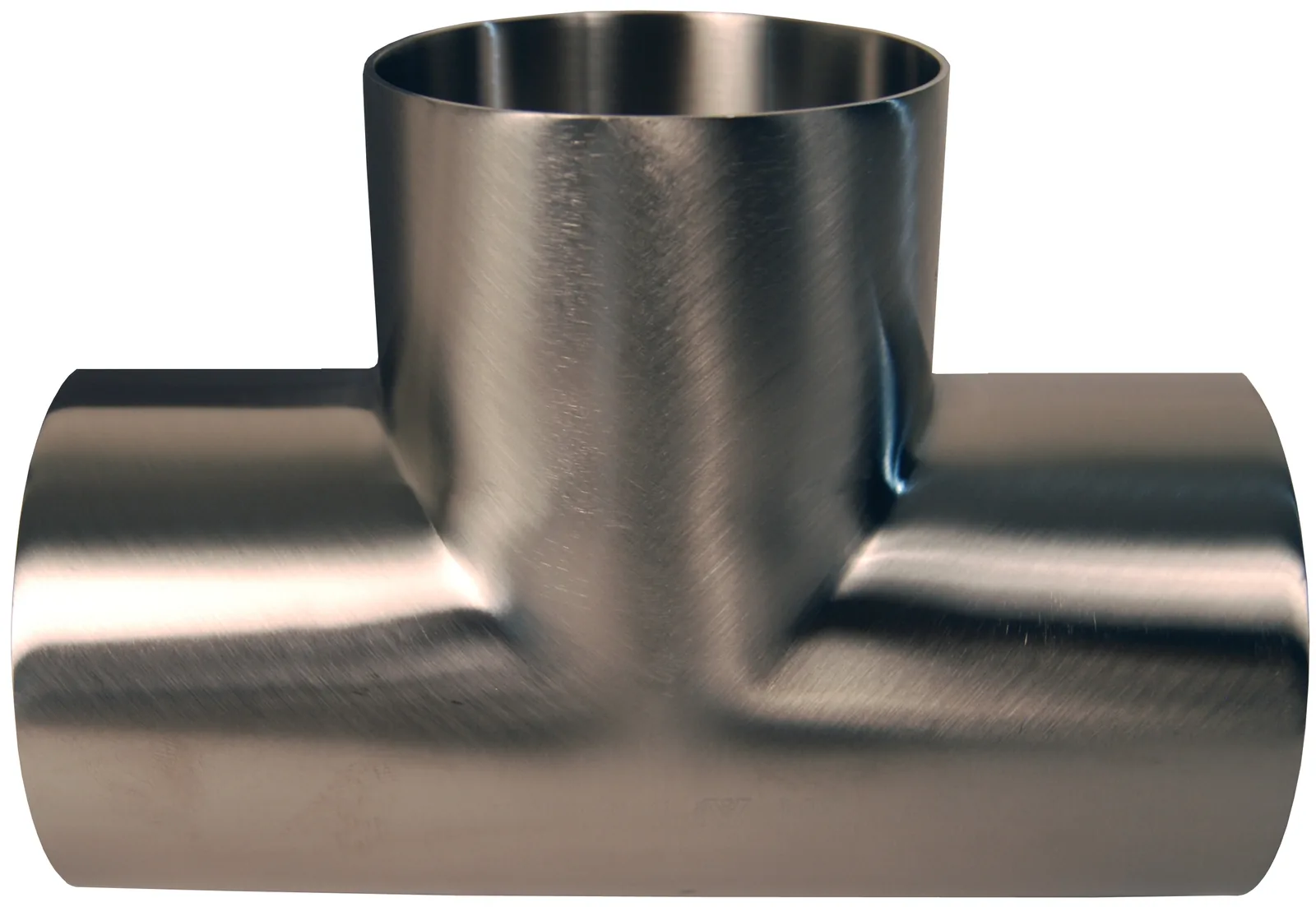

Dimensions & part numbers — 7W butt weld long tee
| Size | A | B | 304 SS | 316L SS |
|---|---|---|---|---|
| Part number | Part number | |||
| 1/2″ | 1.875 | 3.750 | — | RT7W056SA |
| 3/4″ | 1.875 | 3.750 | — | RT7W756SA |
| 1″ | 1.875 | 3.750 | RT7W104SA | RT7W106SA |
| 1-1/2″ | 2.250 | 4.500 | RT7W154SA | RT7W156SA |
| 2″ | 3.000 | 6.000 | RT7W204SA | — |
| 2-1/2″ | 3.000 | 6.000 | RT7W254SA | — |
| 3″ | 3.250 | 6.500 | RT7W304SA | — |
| 4″ | 3.875 | 7.750 | — | — |
| 6″ | 5.030 | 10.038 | — | — |

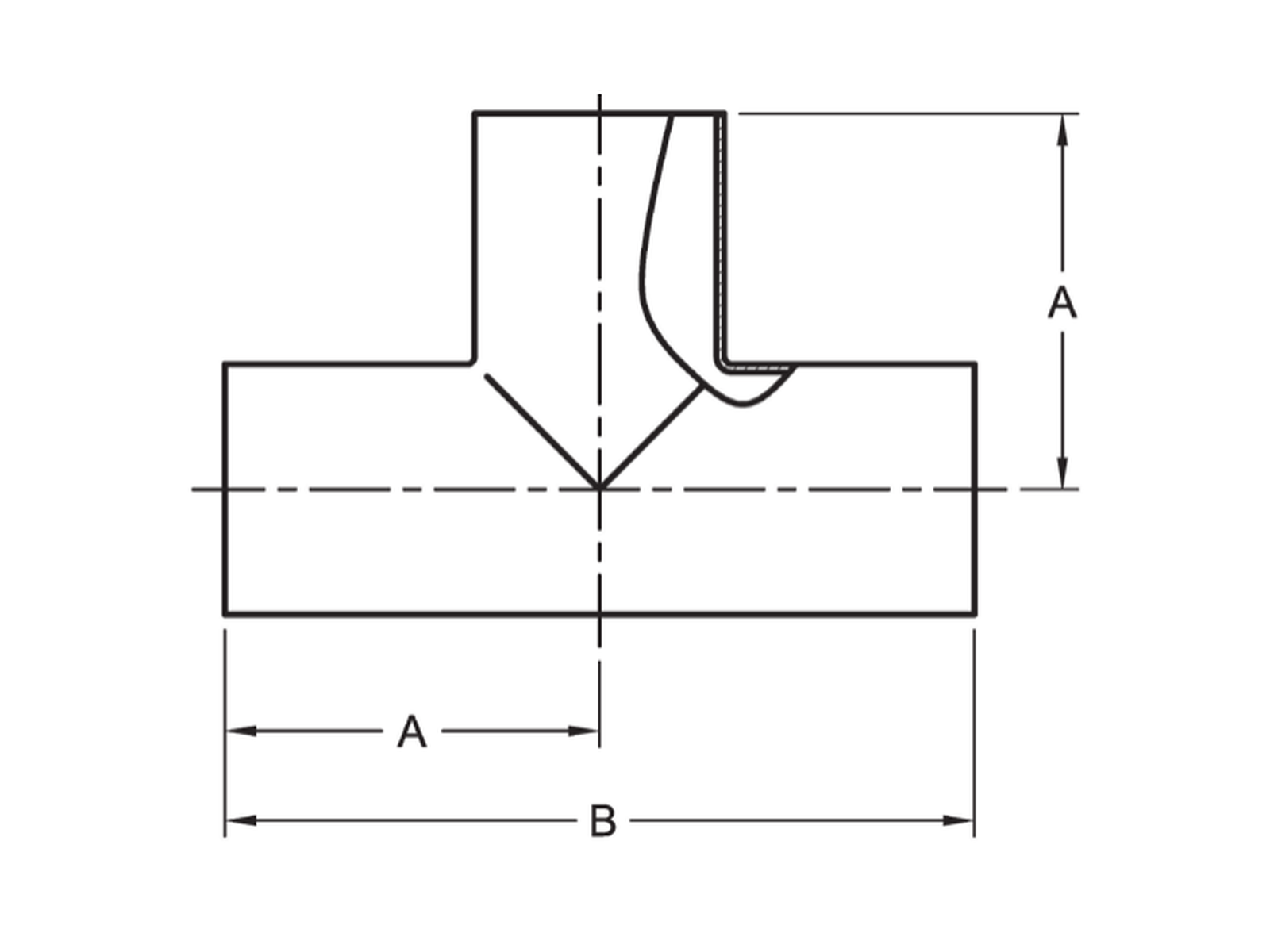

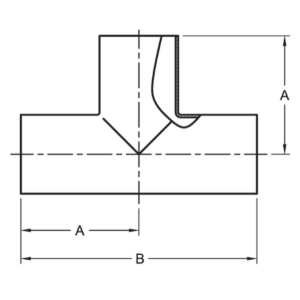

A — see drawing (in)B — see drawing (in)
— — Not stocked online, contact us
— — Not stocked online, contact us
All dimensions in inches. Contact us for sizes and materials not listed online.
Features:
- Butt weld ends
- Long body style
- Polished finish
- Sizes from 1/2″ through 3″
- Meets sanitary industry standards for food, beverage, dairy, pharmaceutical, and industrial process applications
Sold individually.
