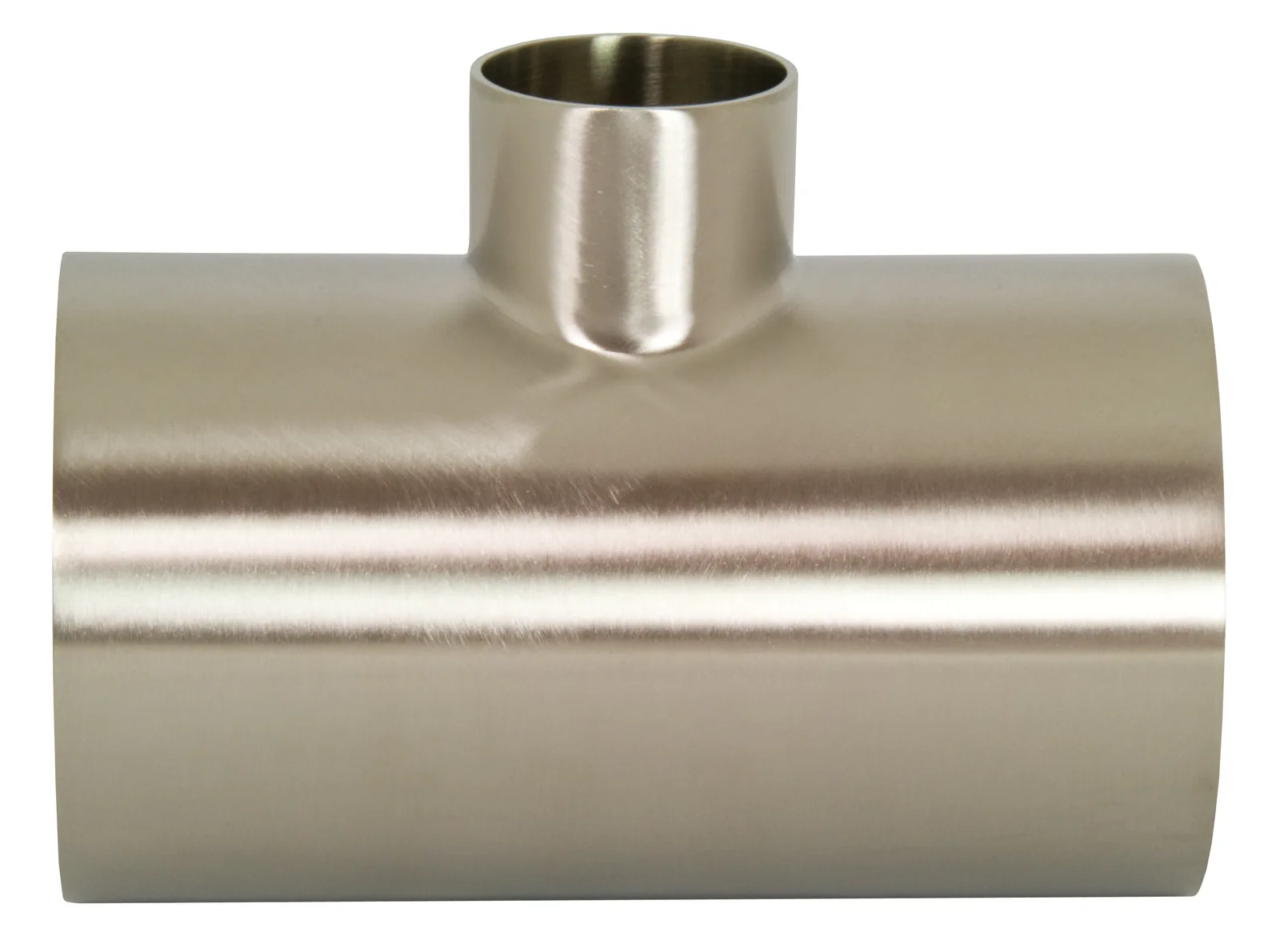

Dimensions & part numbers — 7RWWW butt weld reducing tee
| Size |
A |
B |
C |
304 SS |
316L SS |
| Part number |
Part number |
| 1-1/2 x 1″ |
1.656 |
3.312 |
1.375 |
RT7RWWW15104SA |
RT7RWWW15106SA |
| 2 x 1″ |
2.062 |
4.125 |
1.625 |
RT7RWWW20104SA |
— |
| 2 x 1-1/2″ |
2.062 |
4.125 |
1.905 |
RT7RWWW20154SA |
— |
| 2-1/2 x 1″ |
2.344 |
4.688 |
1.875 |
RT7RWWW25104SA |
— |
| 2-1/2 x 1-1/2″ |
2.344 |
4.688 |
2.156 |
RT7RWWW25154SA |
RT7RWWW25156SA |
| 2-1/2 x 2″ |
2.344 |
4.688 |
2.312 |
— |
— |
| 3 x 1″ |
2.594 |
5.188 |
2.125 |
RT7RWWW30104SA |
— |
| 3 x 1-1/2″ |
2.594 |
5.188 |
2.406 |
RT7RWWW30154SA |
— |
| 3 x 2″ |
2.594 |
5.188 |
2.562 |
RT7RWWW30204SA |
— |
| 3 x 2-1/2″ |
2.594 |
5.188 |
2.594 |
RT7RWWW30254SA |
RT7RWWW30256SA |
| 4 x 1″ |
3.438 |
6.875 |
2.625 |
— |
— |
| 4 x 1-1/2″ |
3.438 |
6.875 |
2.906 |
— |
— |
| 4 x 2″ |
3.438 |
6.875 |
3.062 |
— |
— |
| 4 x 2-1/2″ |
3.438 |
6.875 |
3.094 |
— |
— |
| 4 x 3″ |
3.438 |
6.875 |
3.094 |
— |
— |
| 6 x 3″ |
5.625 |
11.250 |
4.875 |
— |
— |
| 6 x 4″ |
5.625 |
11.250 |
5.125 |
— |
— |
| 8 x 4″ |
7.000 |
14.000 |
6.125 |
— |
— |
| 8 x 6″ |
7.000 |
14.000 |
6.625 |
— |
— |

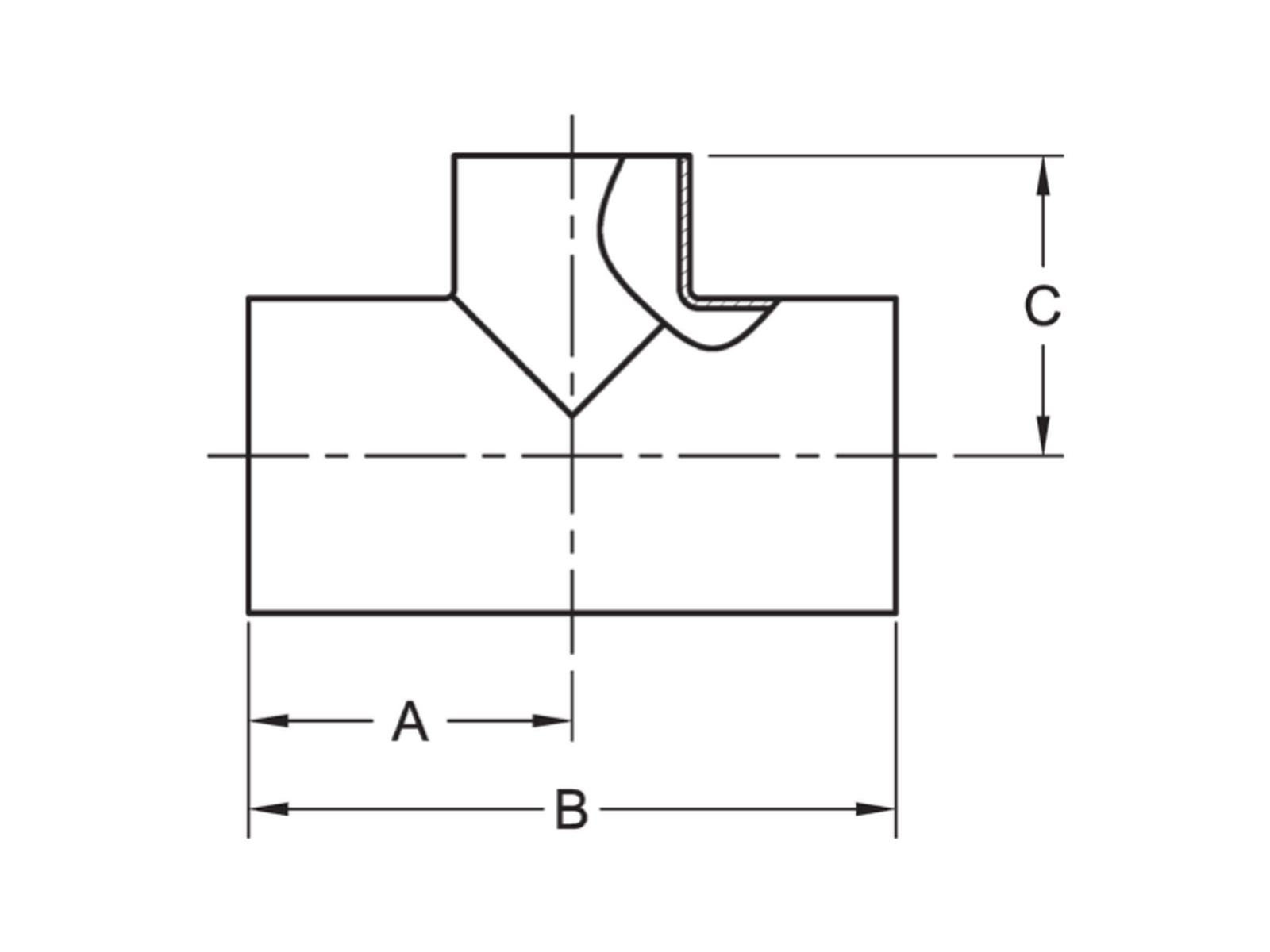

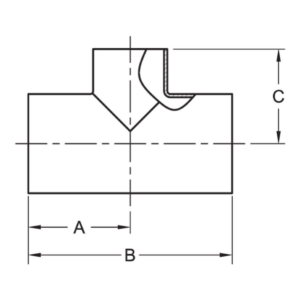

A — see drawing (in)B — see drawing (in)C — see drawing (in)
— — Not stocked online, contact us
All dimensions in inches. Contact us for sizes and materials not listed online.
Features:
- Butt weld ends
- Smaller branch outlet
- Polished finish
- Available in 12 size combinations
- Meets sanitary industry standards for food, beverage, dairy, pharmaceutical, and industrial process applications
Sold individually.
Cross Reference
Cross reference — competitor part numbers
RT Process RT7RWWWDixon B7RWWWWayland 7RWWWTri-Clover L7RWWWVNE E7RWWW
| Size | Material | RT Process | Dixon | Wayland |
|---|
| 3/4" x 1/2" | 316L SS | RT7RWWW75056SA | B7RWWW-R7550P | W67RWWW-.75X.50-7 |
| 1" x 1/2" | 316L SS | RT7RWWW10056SA | B7RWWW-R10050P | W67RWWW-1X.50-7 |
| 1" x 3/4" | 316L SS | RT7RWWW10756SA | B7RWWW-R10075P | W67RWWW-1X.75-7 |
| 1-1/2" x 1" | 304 SS | RT7RWWW15104SA | B7RWWW-G150100P | W47RWWW-15X1-7 |
| 1-1/2" x 1" | 316L SS | RT7RWWW15106SA | B7RWWW-R150100P | W67RWWW-15X1-7 |
| 2" x 1" | 304 SS | RT7RWWW20104SA | B7RWWW-G200100P | W47RWWW-2X1-7 |
| 2" x 1-1/2" | 304 SS | RT7RWWW20154SA | B7RWWW-G200150P | W47RWWW-2X15-7 |
| 2-1/2" x 1" | 304 SS | RT7RWWW25104SA | B7RWWW-G250100P | W47RWWW-25X1-7 |
| 2-1/2" x 1-1/2" | 304 SS | RT7RWWW25154SA | B7RWWW-G250150P | W47RWWW-25X15-7 |
| 2-1/2" x 1-1/2" | 316L SS | RT7RWWW25156SA | B7RWWW-R250150P | W67RWWW-25X15-7 |
| 3" x 1" | 304 SS | RT7RWWW30104SA | B7RWWW-G300100P | W47RWWW-3X1-7 |
| 3" x 1-1/2" | 304 SS | RT7RWWW30154SA | B7RWWW-G300150P | W47RWWW-3X15-7 |
| 3" x 2" | 304 SS | RT7RWWW30204SA | B7RWWW-G300200P | W47RWWW-3X2-7 |
| 3" x 2-1/2" | 304 SS | RT7RWWW30254SA | B7RWWW-G300250P | W47RWWW-3X25-7 |
| 3" x 2-1/2" | 316L SS | RT7RWWW30256SA | B7RWWW-R300250P | W67RWWW-3X25-7 |
Cross references are for identifying an equivalent fitting by style and size. Dimensions and finishes can vary slightly between manufacturers. Dixon, Wayland, Tri-Clover (Alfa Laval), Steel & O'Brien and VNE are trademarks of their owners and are named for reference only. Questions? Call RT Process & Supply and we'll confirm the match.
