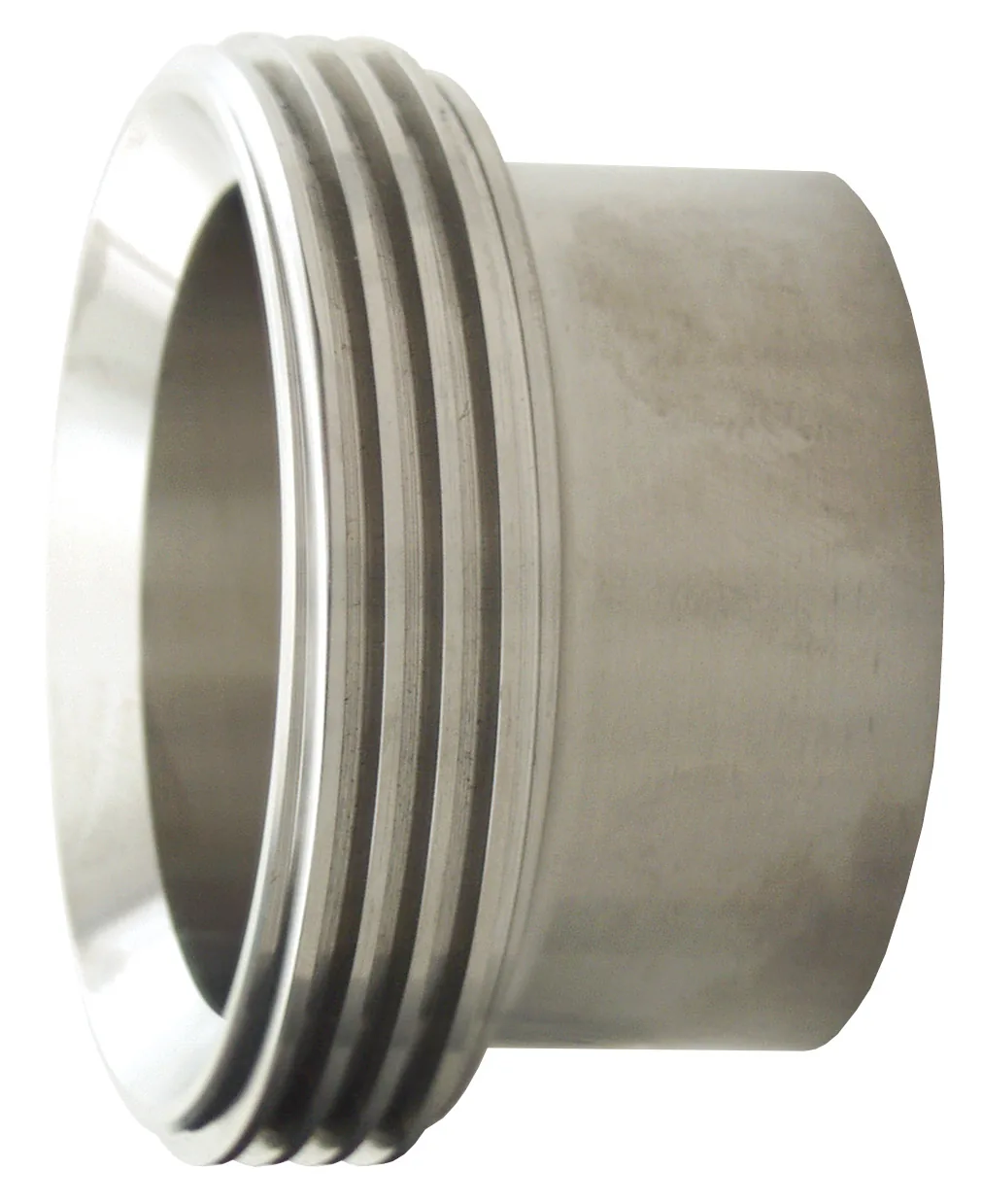

Dimensions & part numbers — 15A bevel seat long threaded ferrule
| Size | A | 304 SS |
|---|---|---|
| Part number | ||
| 1″ | 1.375 | RT15A104SA |
| 1-1/2″ | 1.500 | RT15A154SA |
| 2″ | 1.500 | RT15A204SA |
| 2-1/2″ | 1.750 | — |
| 3″ | 1.750 | RT15A304SA |
| 4″ | 1.750 | RT15A404SA |

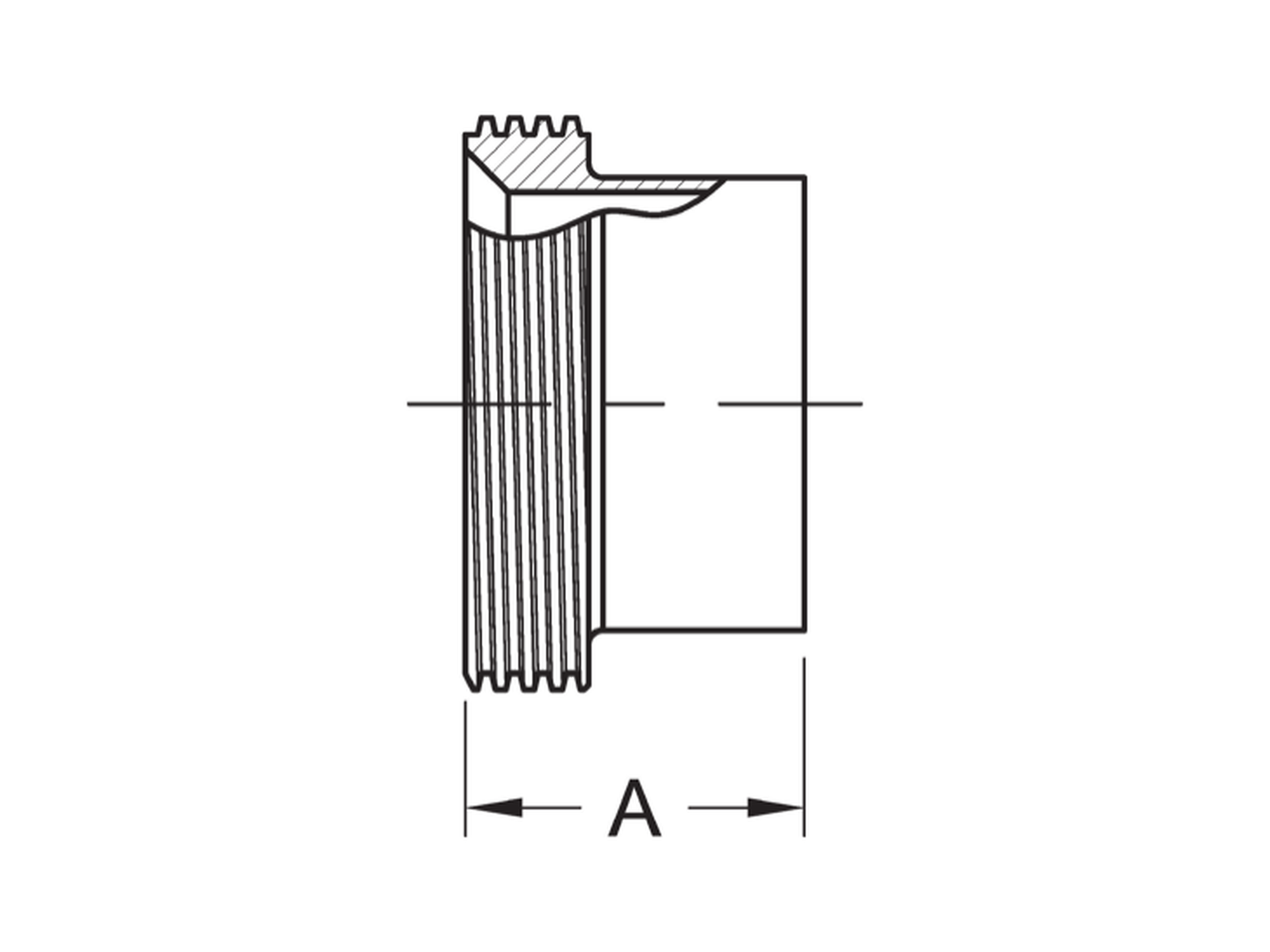

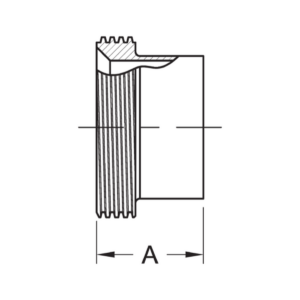

A — see drawing (in)
— — Not stocked online, contact us
— — Not stocked online, contact us
All dimensions in inches. Contact us for sizes and materials not listed online.
Features:
- Long weld end
- Threaded for use with bevel seat union nuts
- Bevel seat sealing face
- Sizes from 1″ through 4″
- Meets sanitary industry standards for food, beverage, dairy, pharmaceutical, and industrial process applications
Sold individually. Nut and gasket sold separately.
